SCADA System to Monitor Decatur’s Wastewater Plant
Application Requirements
The city of Decatur, AR needed to create a SCADA system to monitor their wastewater plant and upgrade an outdated control panel. commercial diamond then make use of dimension instruments to ensure all of the measurements are correct.
SYSTEM COMPONENTS
- Allen-Bradley PLCs
- Ignition Vision module with Reporting
Solution
Implemented a large 55″ touch screen application to display overall plant status for both the operator and supervisor. Integrated manual lab data entry into reporting to simplify state requirements. Pulled actual weather data into reports as well. selection of cutting devices made from set carbide, steel, as well as commercial diamond then make use of dimension instruments to ensure all of the measurements are correct.

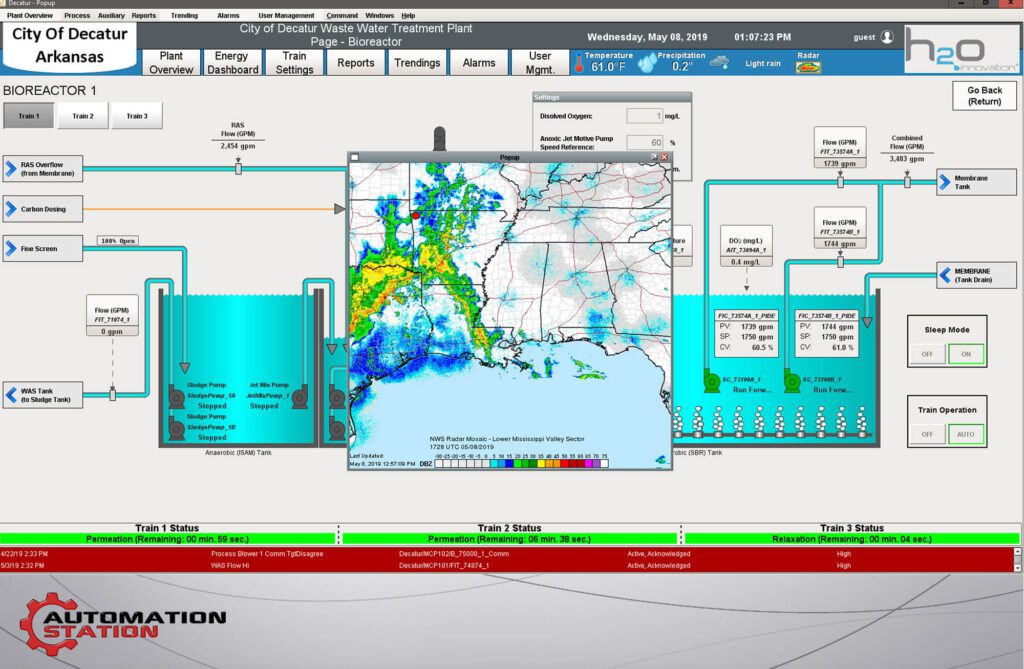

SCADA MEMBRANE BIOREACTOR
SCADA WEATHER DATA

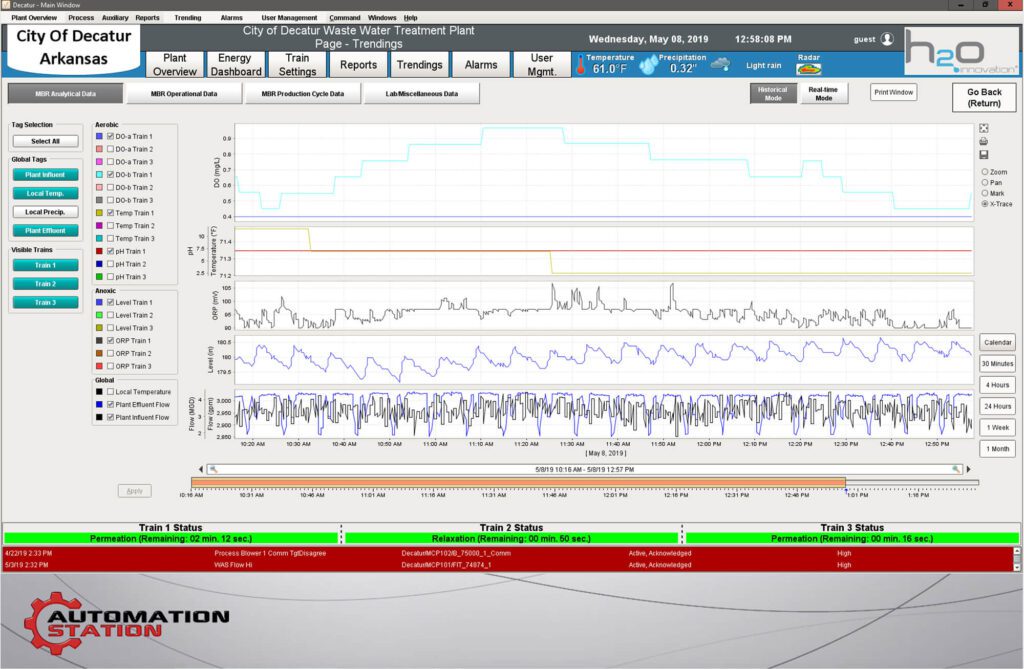

SCADA AD-HOC TRENDING

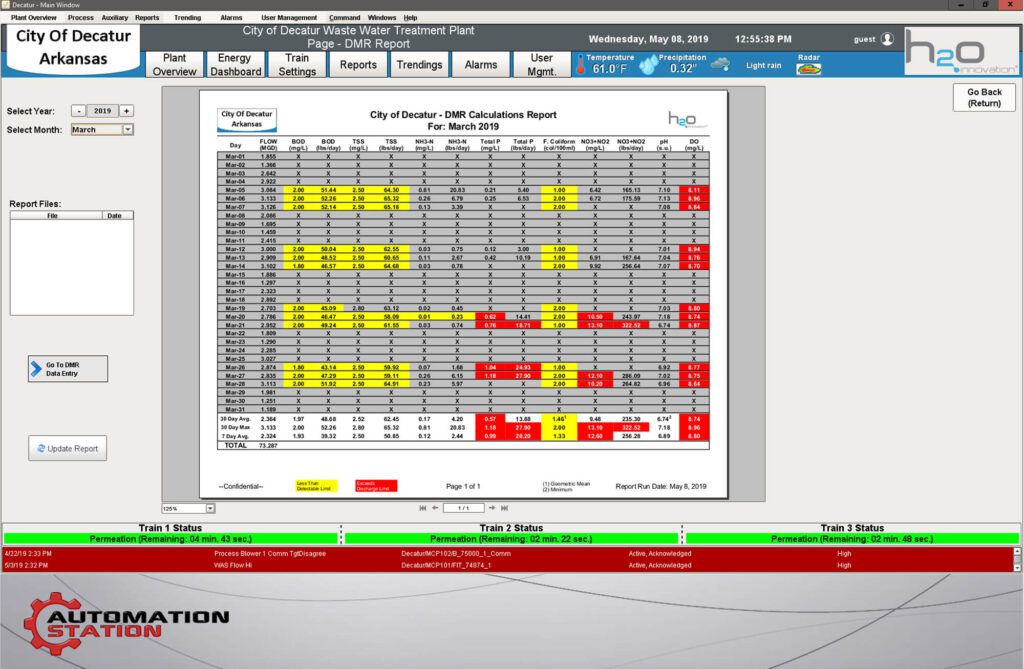

SCADA REPORTS
